Descripción

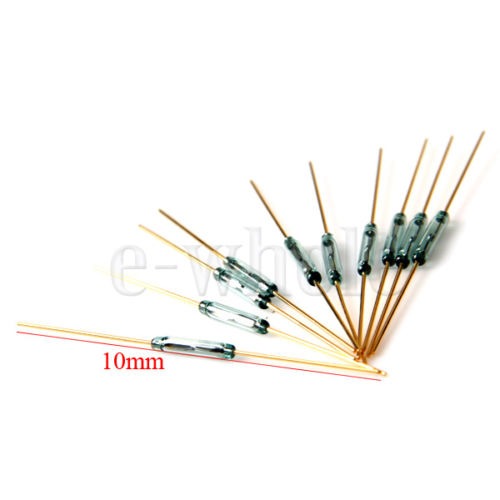

10x 10 Mm Reed Switch Vidrio S/o baja tensión actual Mka10110 H5, sensor magnetico
- Model MKA-10110
- Contact Type SPST (Form A)
- Max. Contact Rating 10W
- Max. Switching Voltage DC100V
- Min. Breakdown Voltage DC 220V
- Max. Switching Current 0.5A
- Max. Carry Current 1.0A
- Max. Initial Contact Resistance 100mΩ
- Min. Insulation Resistance 1010Ω
- Operate time 0.4ms
- Bounce time 0.4ms
- Release time 0.1ms
- Resonant Frequency 4000Hz
- Max. Operating Frequency 500Hz
- Pull in Value 10-15AT
- Min. Drop out Value 5AT
- Max. Contact Capacitance 0.7pF
- Test Coil Resistance 870Ω
- Glass Tube Size (Approx.) 1.7 x 9.8mm/ 0.067″ x 0.385″(D*L)
- Lead Terminal Size (Approx.) 0.3 x 16mm/ 0.011″ x 0.63″(D*L) (Each Side)
- Total Length (Approx.) 41.6mm/ 1.639″
- Color Gold Tone, Green
