Descripción
Placa de PCB diseñada para Arduino Mega 2560, arma tus circuitos e inserta en tu plaza como cualquier shield del mercado.

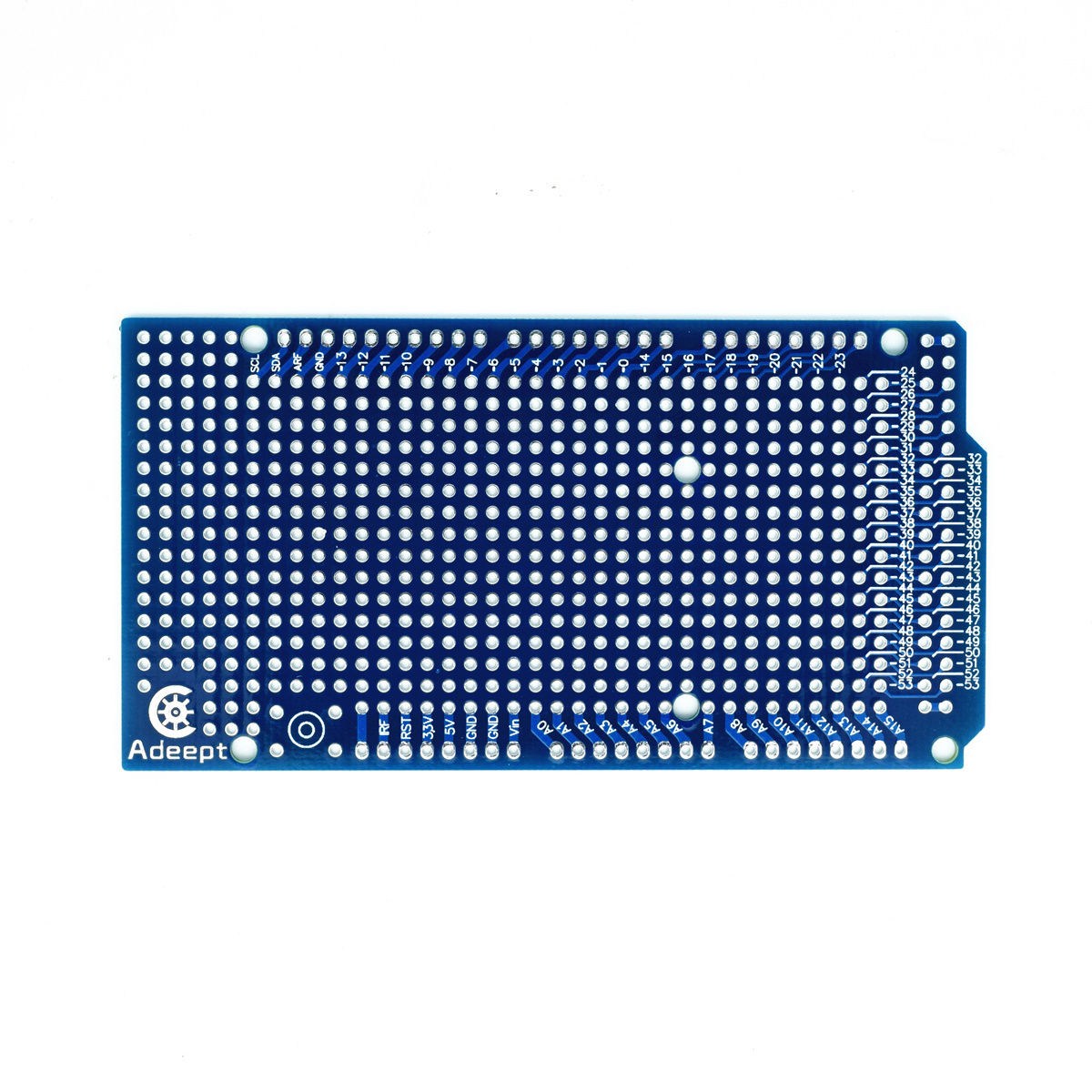

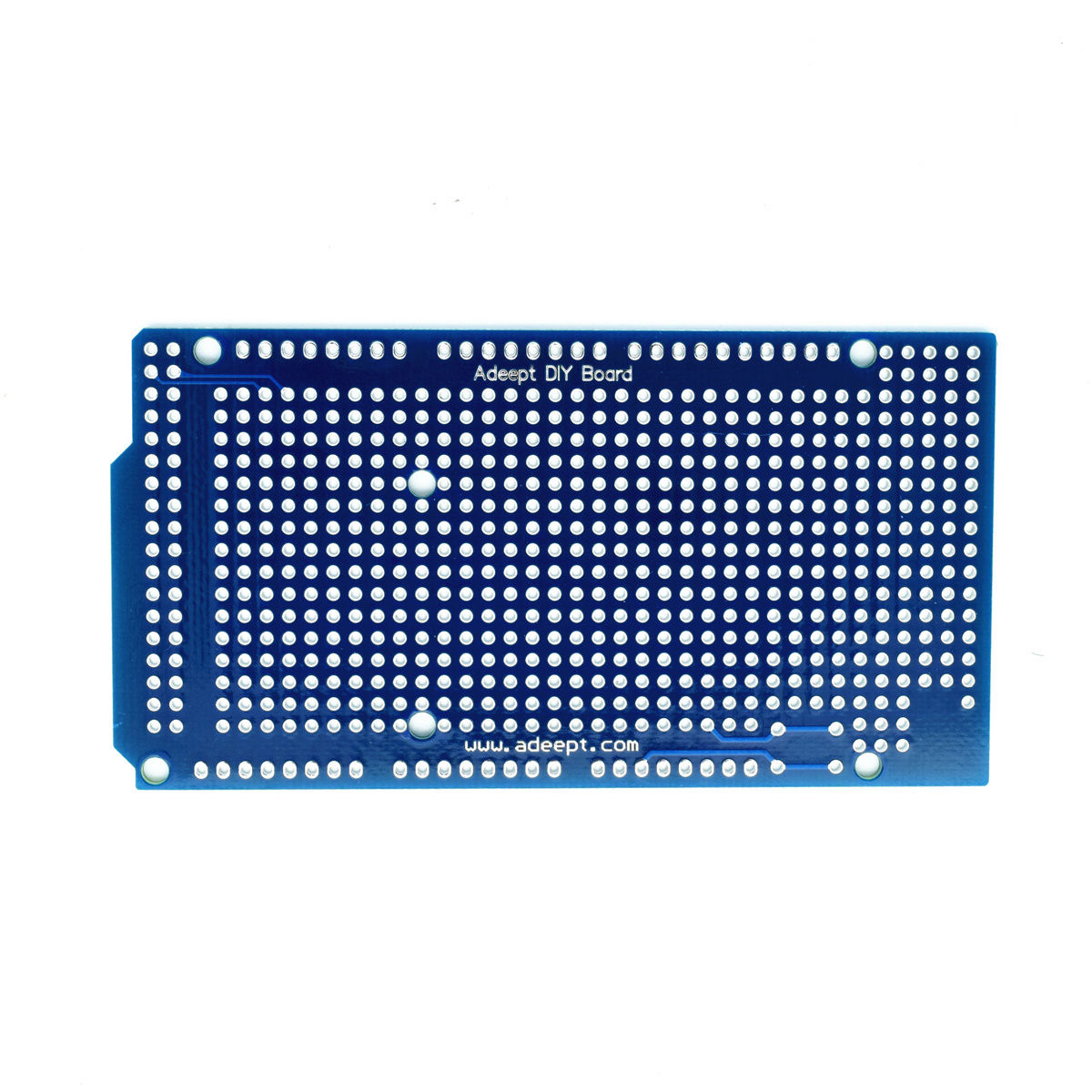

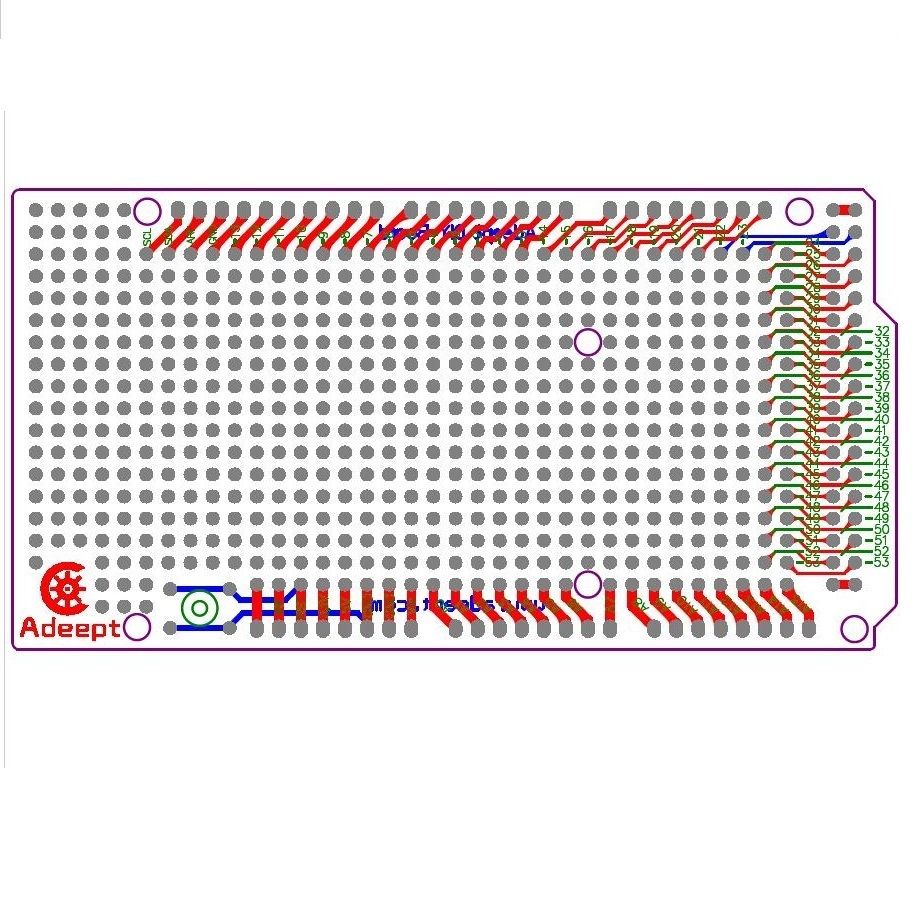

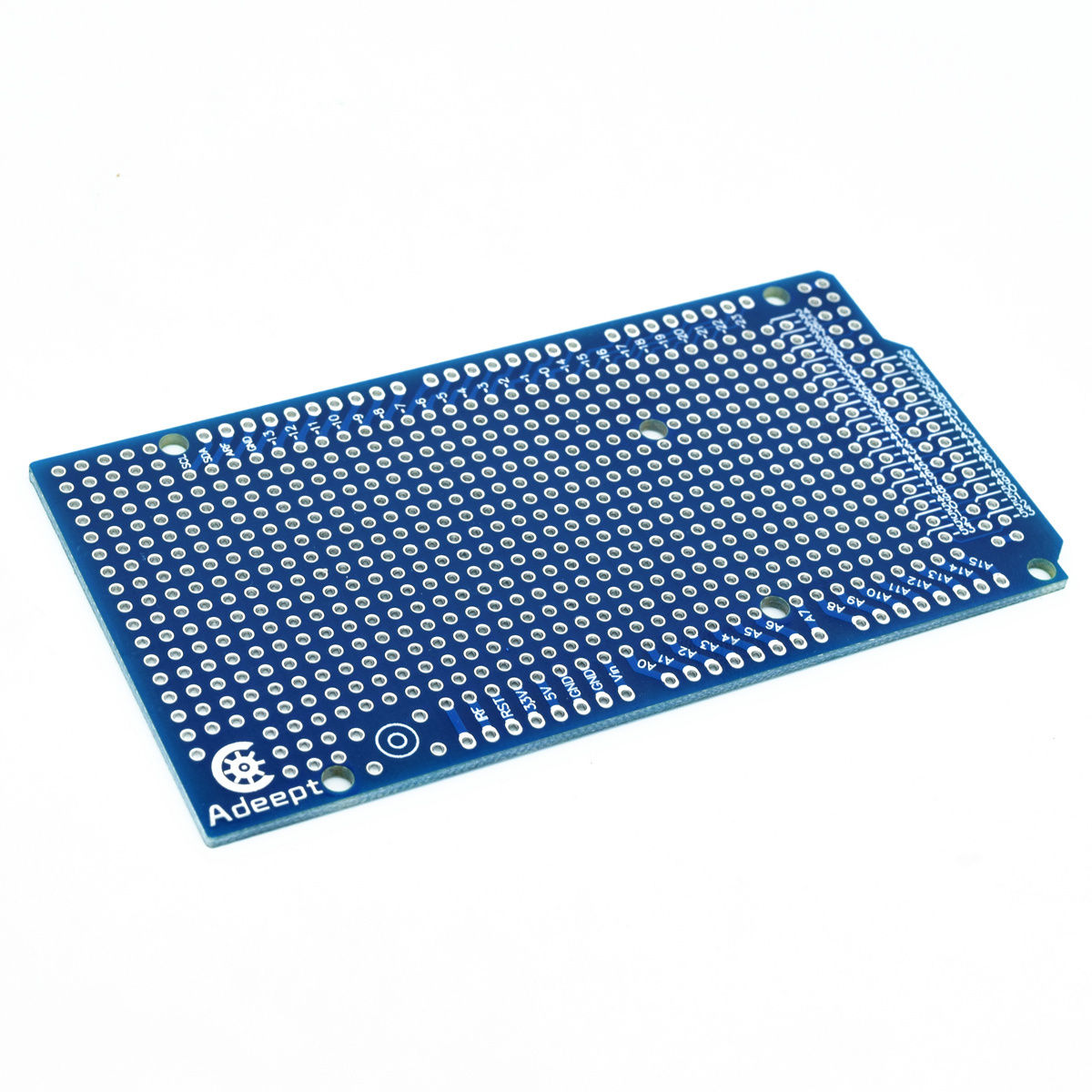

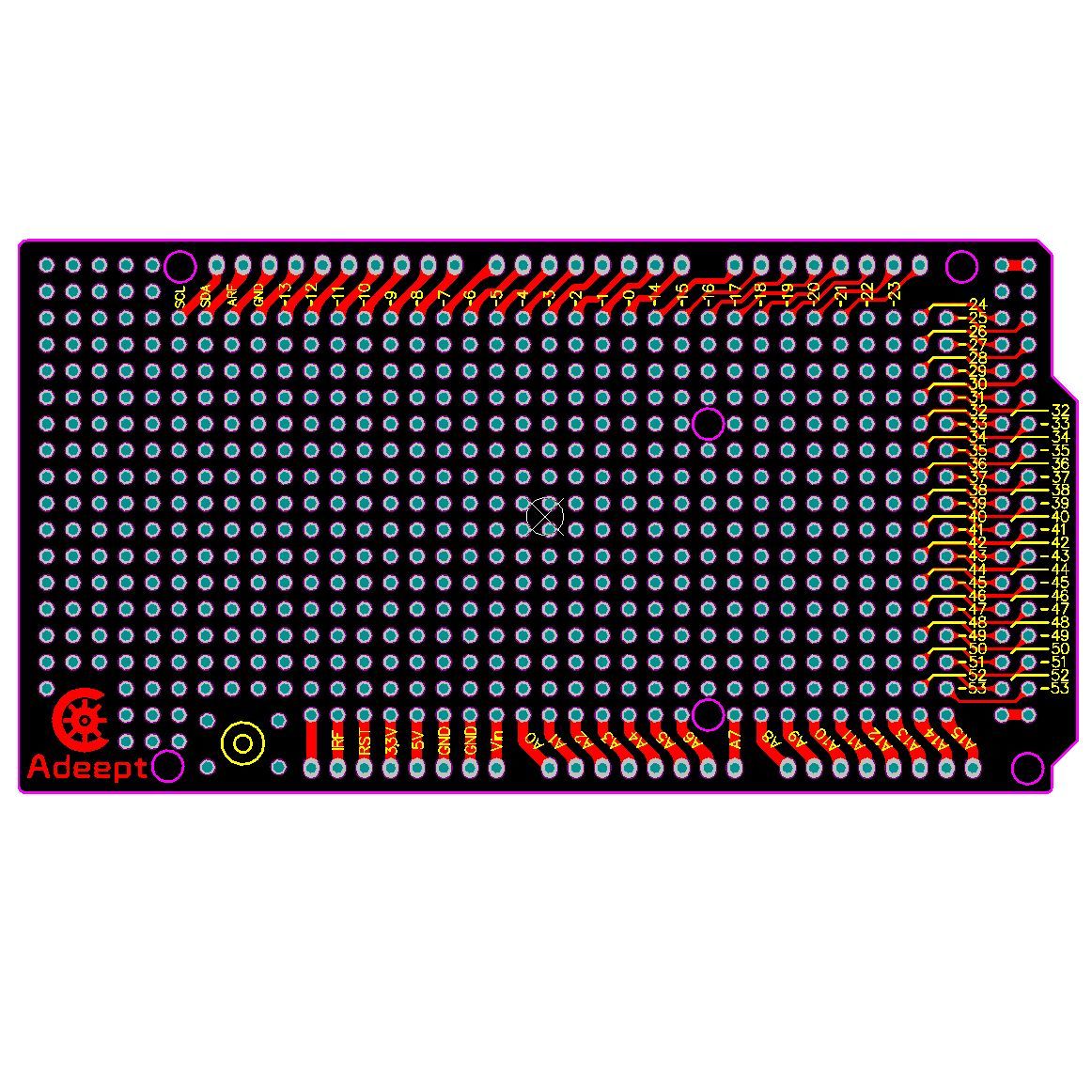

Prototype PCB for Arduino Mega 2560 R3 Shield Board DIY.
Quantity: a lot of 10 pieces.
PCB Dimension: 101.6mm x 53.34mm / 4 «x 2.1»
PCB Thickness: 1.6mm
Material: high quality FR-4 glass fiber PCB.
All holes are plated through
Dual copper layers.
Pads grid (pitch) 2.54 mm / 0.1 «, hole diameter 0.9 mm.
Pads grid (pitch) 2.54mm / 0.1», hole diameter 0.9mm.
