Descripción
- Typical applications: attendance systems, patrol system, enterprise systems, access control systems, radio frequency identification field and so on.
Features:

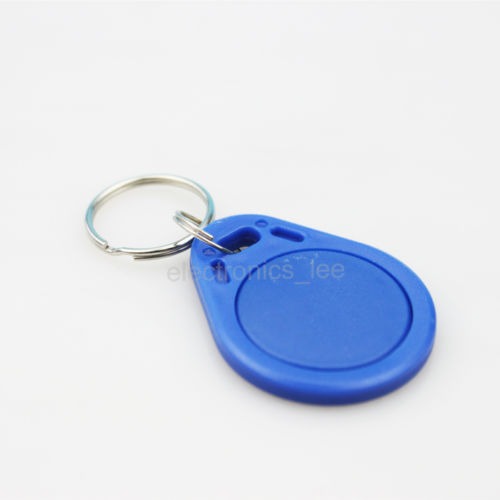

- Color: Blue
- Size: 32×40.5×4.2mm
- RF Interface (ISO/IEC 14443 A)
- Contactless transmission of data and supply energy(no need of battery)
- Operating frequency: 13.56Mhz
- Working distance: Up to 100mm(depending on the reader)
- Communication rate: 106Kbit/s
- True anti-collision
- Typical ticketing transaction: <100ms(including backup management)
EEPROM:
- Write endurance 100.000 cycles
- Data retention of 10 years
- 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
- User definable access conditions for each memory block
