Descripción

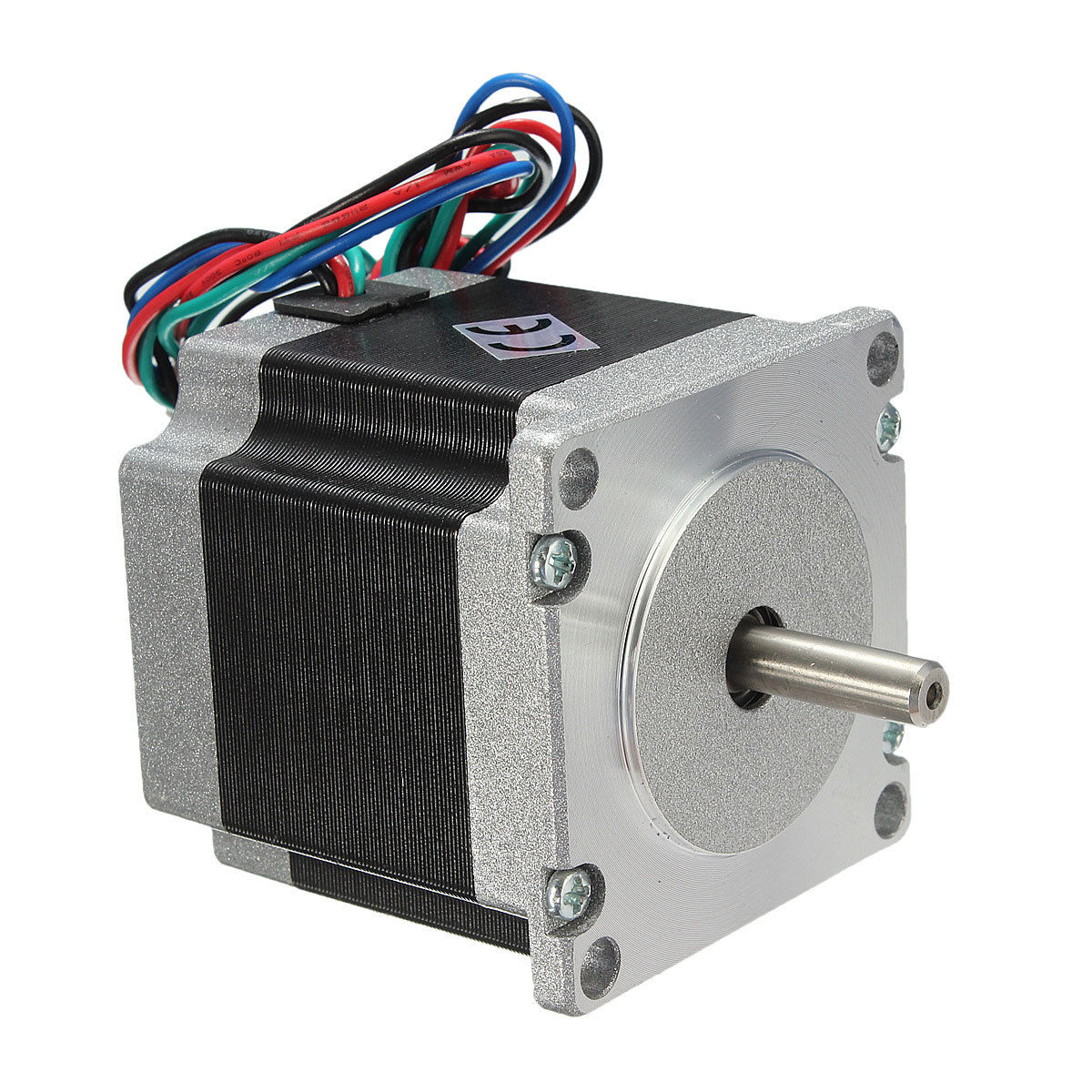

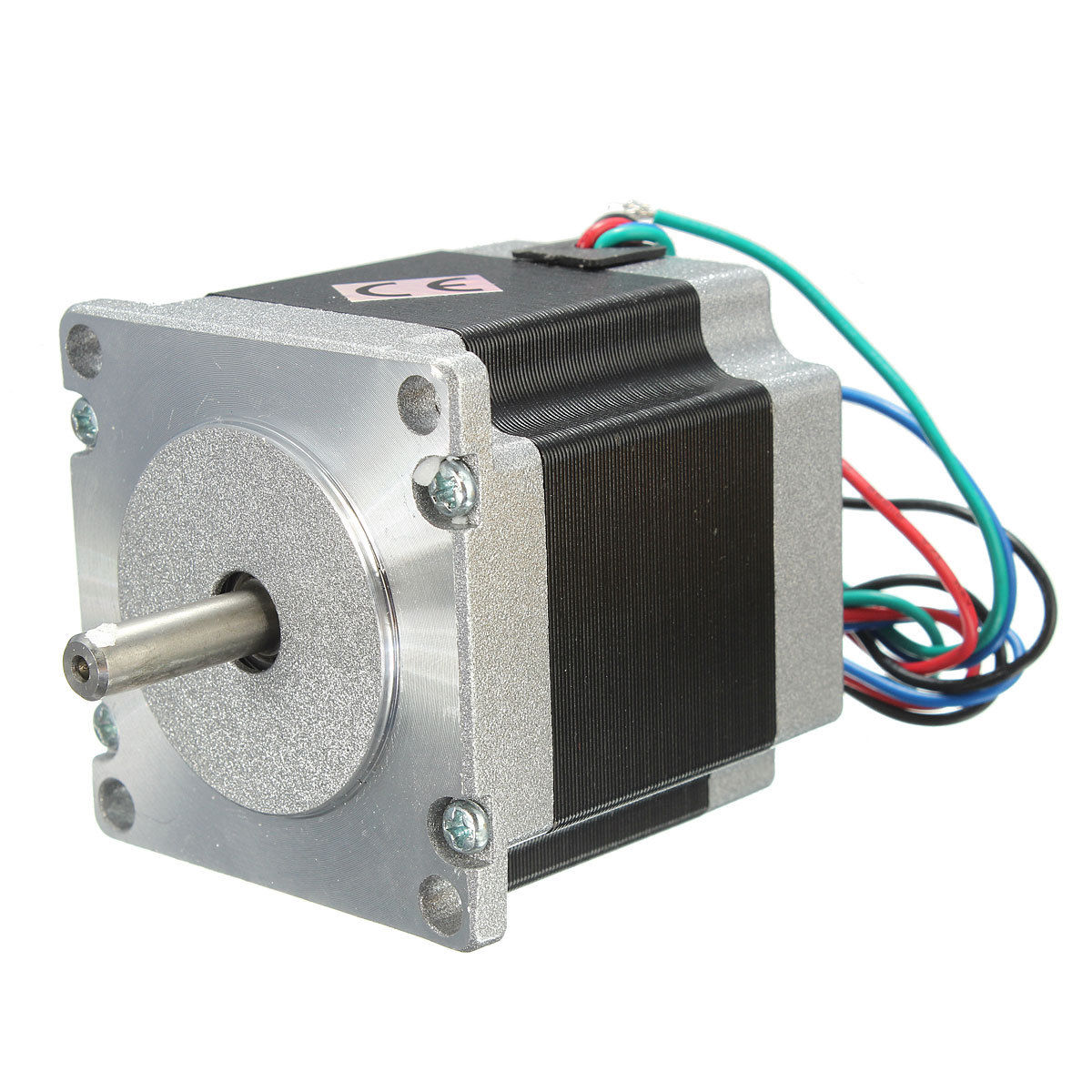

Nema 23 motor gradual single shaft 12.6Kg/cm 1.8 grados 4 contactos 56mm 4 Canales
Specifications:
Rated voltage: 24 (V)
Weight: 0.68KG
Product Certification: CE
Lead wrie No.: 4
Scope: engraving machine, cutting plotter, 3D printer, monitoring equipment, medical equipment, textile machinery, packaging machinery, stage lighting
Electrical Specifications:
| Model | Step Angle ( ° ) | Motor Length (mm) | Rate Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | Lead Wire (NO.) | Rotor Inertia (g.cm) | Motor Weight (KG) |
| JK86HS115-6004 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 280 | 68 |
